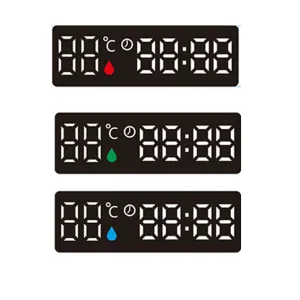

A 7-segment LED display is a widely used electronic display device that can represent numerical digits (0-9) and some alphabetic characters. It consists of seven individual light-emitting diode (LED) segments labeled A to G, arranged in a specific pattern to form an "8" shape. Each segment can be independently illuminated to display different characters. Structure and Operation The seven segments are arranged as follows: - Segments A, B, C, D, E, F, G form the main structure. - An optional decimal point (DP) is sometimes included for displaying fractional numbers. By lighting different combinations of segments, numbers and limited letters can be displayed. For example: - "0": Segments A, B, C, D, E, F - "1": Segments B, C - "2": Segments A, B, G, E, D - "3": Segments A, B, G, C, D - "4": Segments F, G, B, C - "5": Segments A, F, G, C, D - "6": Segments A, F, G, E, C, D - "7": Segments A, B, C - "8": All segments (A-G) - "9": Segments A, B, F, G, C, D Types of 7-Segment Displays 1. Common Cathode (CC): All LED cathodes are connected to ground, and each segment is lit by applying a positive voltage. 2. Common Anode (CA): All LED anodes are connected to a power source, and segments are lit by grounding them. Applications 7-segment displays are commonly found in: - Digital clocks - Calculators - Electronic meters - Scoreboards - Industrial control panels Advantages - Simple control: Requires only a few digital signals. - Low power consumption: LEDs are energy-efficient. - High visibility: Bright and easy to read. Limitations - Limited character set: Cannot display complex symbols or lowercase letters effectively. - Higher power in multiplexed setups: When driving multiple displays, power management is needed. Driving a 7-Segment Display A BCD-to-7-segment decoder (e.g., 7447 IC) is often used to convert binary-coded decimal (BCD) inputs into segment control signals. Alternatively, microcontrollers (e.g., Arduino) can directly drive the display using GPIO pins. Conclusion The 7-segment LED display remains a fundamental component in digital electronics due to its simplicity, efficiency, and versatility in numeric display applications. Despite the rise of more advanced displays (e.g., dot matrix, OLED), it remains widely used in cost-sensitive and power-efficient designs.
